RL - Markov Decision Processes

Table of Contents

Markov Processes
Markov Reward Process
Markov Decision Process

Markov Processes

Basically, Markov decision processes formally describe an environment for reinforcement learning, where the environment is fully observable, which means the current state completely characterises the process.

Almost all RL problems can be formalised as MDPs, e.g.

Optimal control primarily deals with continuous MDPs
Partially observable problems can be converted into MDPs
Bandits are MDPs with one state

So, if we solve MDP, we can solve all above RL problems.

Markov Property

Markov Property is "The future is independent of the past given the present", like last note said. The formal definition is: \[ P[S_{t+1}|S_t]=P[S_{t+1}|S_1, ..., S_t] \] where \(S\) represents a state.

The formula means the current can capture all relevant information from the history. Once the state is known, the history may be thrown away, i.e. the state is a sufficient statistic of the future.

State Transition Matrix

We know that given the current state, we can use its information to reach the next state, but how? — It is characterized by the state transition probability.

For a Markov state \(s\) and successor state \(s'\) , the state transition probability is deﬁned by \[ P_{ss'}=P[S_{t+1}=s'|S_t=s] \] We can put all of the probabities into a matrix called transition matrix, denoted by \(P\) : \[ P = \begin{bmatrix} P_{11} & \cdots & P_{1n} \\ \vdots & \ddots & \vdots \\ P_{n1} & \cdots & P_{nn} \end{bmatrix} \] where each row of the matrix sums to 1.

Markov Process

Formally, a Markov process is a memoryless random process, i.e. a sequence of random states \(S_1, S_2, …\) with the Markov property.

Definition

A Markov Process (or Markov Chain) is tuple \(<S, P>\)

\(S\) is a (finite) set of states

\(P\) is a state transition probability matrix, \(P_{ss'} = P[S_{t+1}=s'|S_t=s]\)

Example

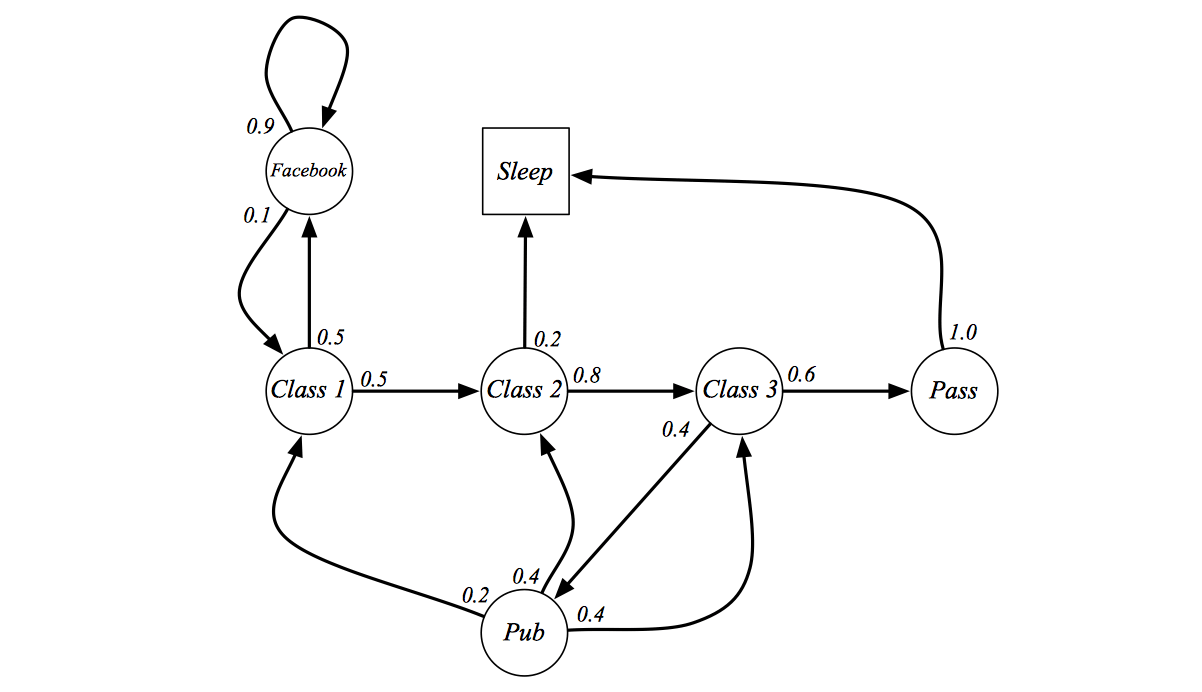

The above figure show a markov chains of a student's life. Process starts from Class 1, taking class 1 may be boring, so he have either 50% probability to look Facebook or to move to Class 2. …. And finally, he reach the final state Sleep. It's a final state just because it is a self-loop with probability 1 which is nothing special.

We can sample sequences from such process. Sample episodes for Student Markov Chain starting from \(S_1 = C_1\): \[ S_1, S_2, ..., S_T \]

C1 C2 C3 Pass Sleep
C1 FB FB C1 C2 Sleep
C1 C2 C3 Pub C2 C3 Pass Sleep
C1 FB FB C1 C2 C3 Pub C1 FB FB FB C1 C2 C3 Pub C2 Sleep

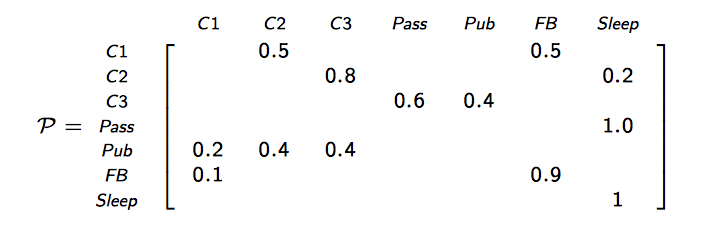

Also, we can make the transition matrix from such markov chain:

If we have this matrix, we can fully describe the Markov process.

Markov Reward Process

So far, we have never talked about Reinforcement Learning, there is no reward at all. So, let's talk about the Markov Reward Process.

The most important is adding reward to Markov process, so a Markov reward process is a Markov chain with values.

Definition

A Markov Reward Process is tuple \(<S, P, R, \gamma>\)

\(S\) is a (finite) set of states

\(P\) is a state transition probability matrix, \(P_{ss'} = P[S_{t+1}=s'|S_t=s]\)

\(R\) is a reward function, \(R_s=E[R_{t+1}|S_t=s]\)

\(\gamma\) is a discount factor, \(\gamma \in [0, 1]\)

Note that \(R\) is the immediate reward, it characterize the reward you will get if you currently stay on state \(s\).

Example

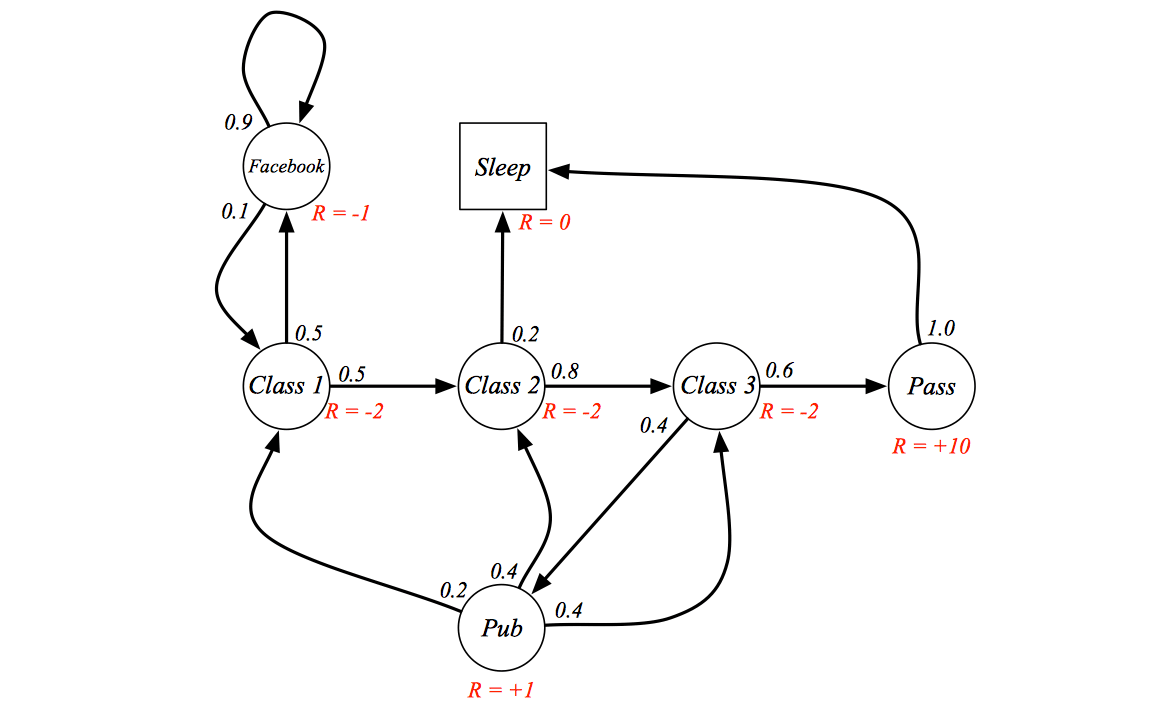

Let's back to the student example:

At each state, we have corresponding reward represents the goodness/badness of that state.

Return

We don't actually care about the immediate reward, we care about the whole random sequence's total reward. So we define the term return:

Definition

The return \(G_t\) is the total dicounted reward from time-step \(t\). \[ G_t=R_{t+1}+\gamma R_{t+2}+...=\sum_{k=0}^\infty \gamma^kR_{t+k+1} \]

The discount \(\gamma \in [0,1]\) is the present value of future rewards. So the value of receiving reward \(R\) after \(k+1\) time-steps is \(\gamma^k R\).

Note: \(R_{t+1}\) is the immediate reward of state \(S_t\).

This values immediate reward above delayed reward:

\(\gamma\) closes to \(0\) leads to "myopic" evaluation
\(\gamma\) closes to \(1\) leads to "far-sighted" evaluation

Most Markov reward and decision processes are discounted. Why?

Mathematically convenient to discount rewards
Avoids inﬁnite returns in cyclic Markov processes
Uncertainty about the future may not be fully represented
If the reward is ﬁnancial, immediate rewards may earn more interest than delayed rewards
Animal/human behaviour shows preference for immediate reward
It is sometimes possible to use undiscounted Markov reward processes (i.e. γ = 1), e.g. if all sequences terminate.

Value Function

The value function \(v(s)\) gives the long-term value of state \(s\).

Definition

The state value funtion \(v(s)\) of an MRP is the expected return starting from state \(s\) \[ v(s) = E[G_t|S_t=s] \]

We use expectation because it is a random process, we want to figure out the expected value of a state, not such a sequence sampled starts it.

Example

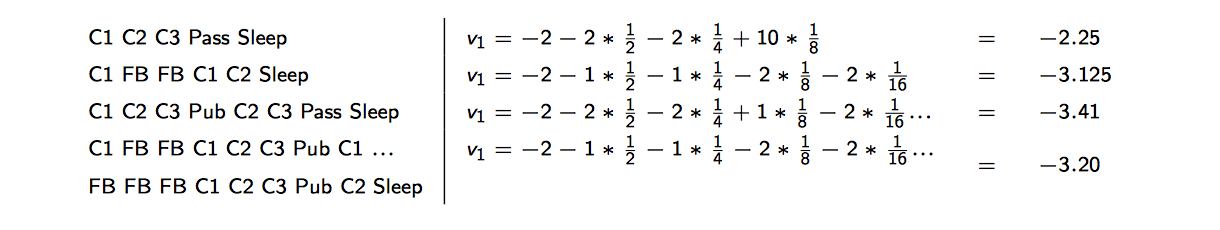

Sample returns from Student MRP, starting from \(S_1 = C1\) with \(\gamma = \frac{1}{2}\): \[ G_1=R_2+\gamma R_3+...+\gamma^{T-2}R_T \]

The return is random, but the value function is not random, rather, it is expectation of all samples' return.

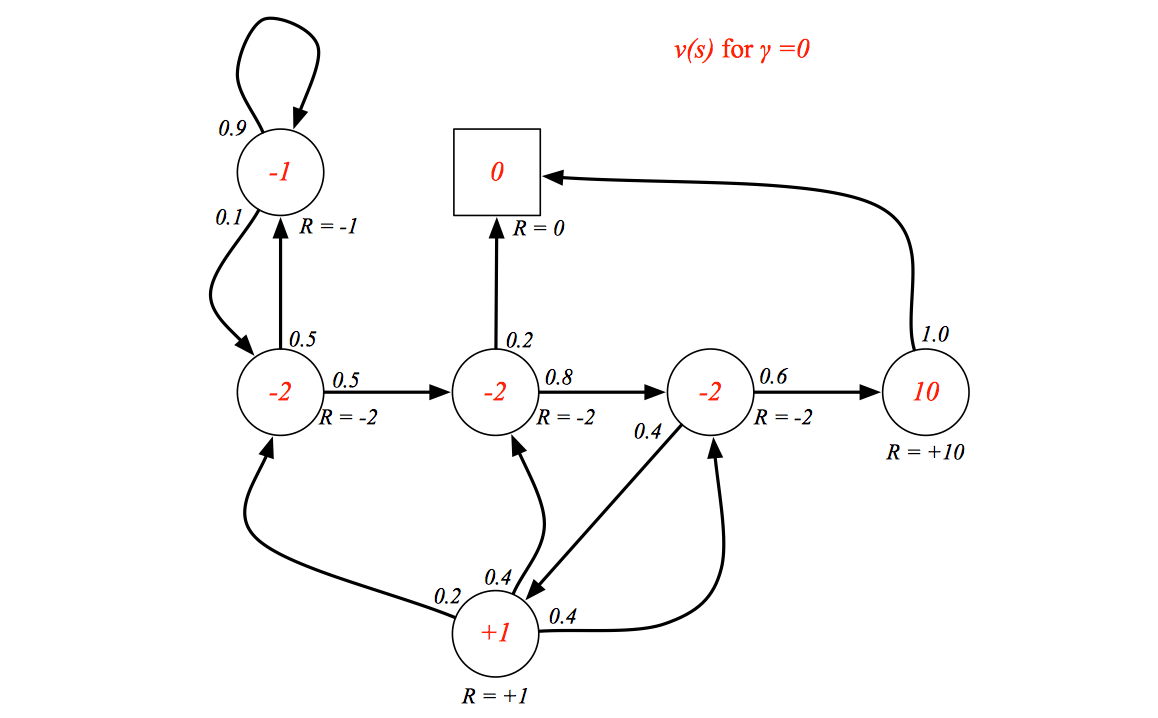

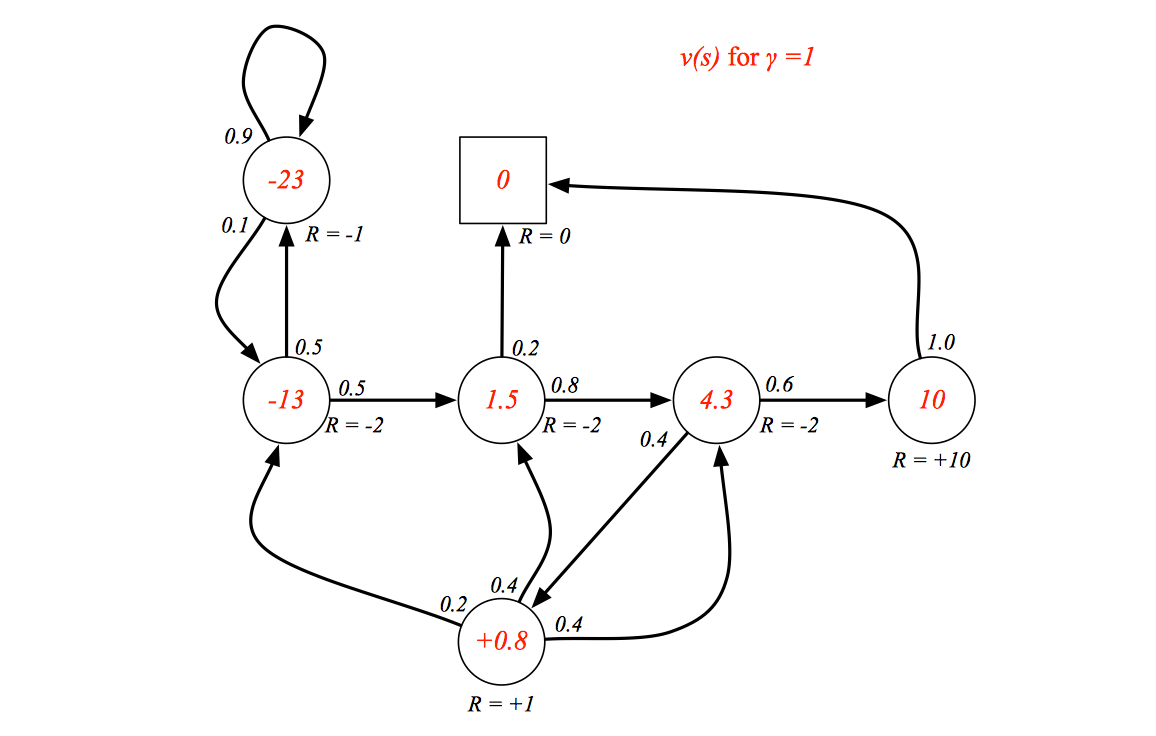

Let's see the example of state value function:

When \(\gamma = 0\), the value function just consider the reward of current state no matter how it changes future.

Bellman Equation for MRPs

The value function can be decomposed into two parts:

immediate reward \(R_{t+1}\)
discounted value of successor state \(\gamma v(S_{t+1})\)

So as to we can apply dynamic programming to solve the value function.

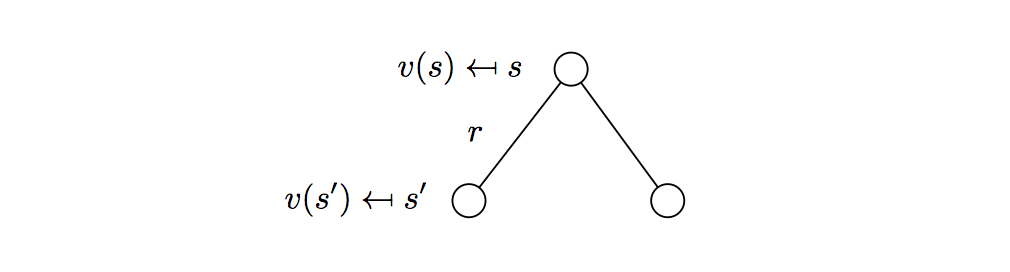

Here is the demonstration: \[ \begin{align} v(s) & = \mathbb{E}[G_t|S_t=s] \\ & = \mathbb{E}[R_{t+1}+\gamma R_{t+2}+\gamma^2 R_{t+3}+...|S_t=s] \\ &= \mathbb{E}[R_{t+1}+\gamma(R_{t+2}+\gamma R_{t+3}+...)|S_t=s]\\ &= \mathbb{E}[R_{t+1}+\gamma G_{t+1}|S_t=s]\\ &= \mathbb{E}[R_{t+1}+\gamma v(S_{t+1})|S_t=s] \end{align} \] Here we get: \[ v(s) =\mathbb{E}[R_{t+1}+\gamma v(S_{t+1})|S_t=s]=R_{t+1}+\gamma\mathbb{E}[ v(S_{t+1})|S_t=s] \] We look ahead one-step, and averaging all value function of next possible state:

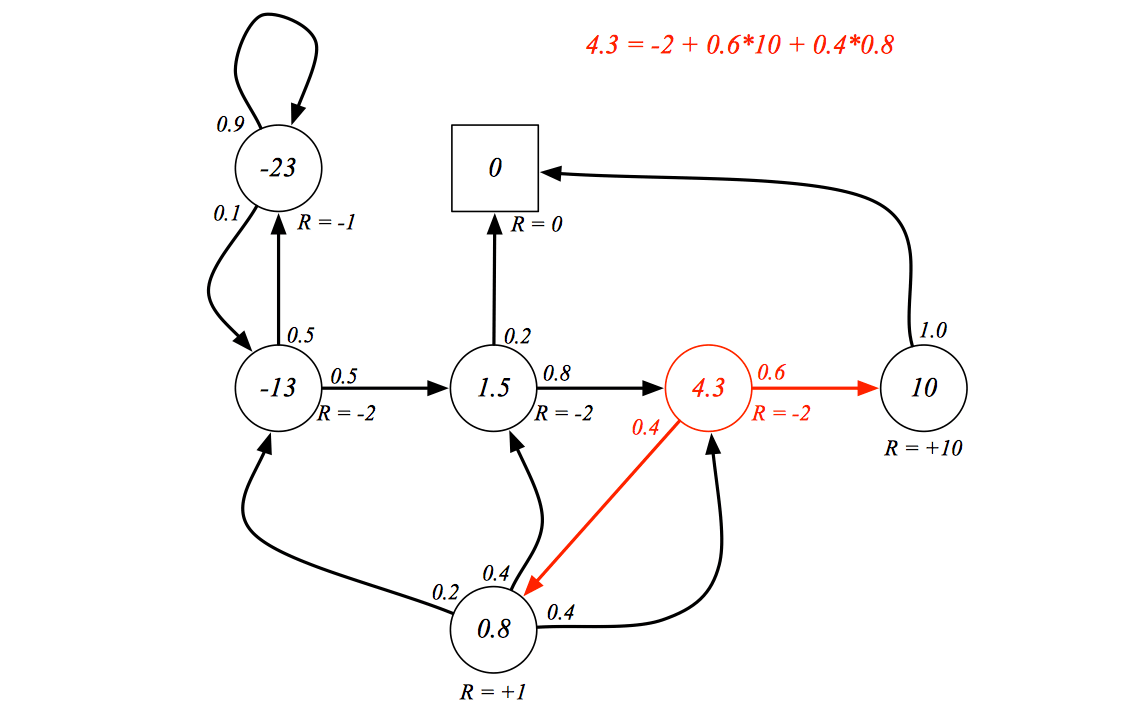

\[ v(s) = R_s+\gamma\sum_{s'\in S}P_{ss'}v(s') \] We can use the Bellman equation to vertify a MRP:

Bellman Equation in Matrix Form

The Bellman equation can be expressed concisely using matrices, \[ v = R + \gamma Pv \] where \(v\) is a column vector with one entry per state: \[ \begin{bmatrix} v(1) \\ \vdots \\ v(n) \end{bmatrix}=\begin{bmatrix} R_1 \\ \vdots \\ R_n \end{bmatrix}+\gamma \begin{bmatrix} P_{11} & \cdots & P_{1n} \\ \vdots & \ddots & \vdots \\ P_{n1} & \cdots & P_{nn} \end{bmatrix}\begin{bmatrix} v(1) \\ \vdots \\ v(n) \end{bmatrix} \] Because the Bellman equation is a linear equation, it can be solved directly: \[ \begin{align} v & = R+\gamma Pv \\ (I-\gamma P)v& =R \\ v &= (I-\gamma P)^{-1}R \end{align} \] However, the Computational complexity is \(O(n^3)\) for \(n\) states, because of the inverse operation. This method can be applied to solve small MRPs.

There are many iterative methods for large MRPs, e.g.

Dynamic programming
Monte-Carlo evaluation
Temporal-Diﬀerence learning

So far with MRP, all we want to do is to make decisions, so let's move on Markov Decision Process, which we actually using in RL.

Markov Decision Process

A Markov decision process (MDP) is a Markov reward process with decisions. It is an environment in which all states are Markov.

Definition

A Markov Decision Process is a tuple \(<S, A,P,R,\gamma>\)

\(S\) is a finite set of states

\(A\) is a finite set of actions

\(P\) is a state transition probability matrix, \(P^a_{ss'}=\mathbb{P}[S_{t+1}=s'|S_t=s, A_t=a]\)

\(R\) is a reward function, \(R^a_s=\mathbb{E}[R_{t+1}|S_t=s,A_t=t]\)

\(\gamma\) is a discount factor \(\gamma \in[0,1]\)

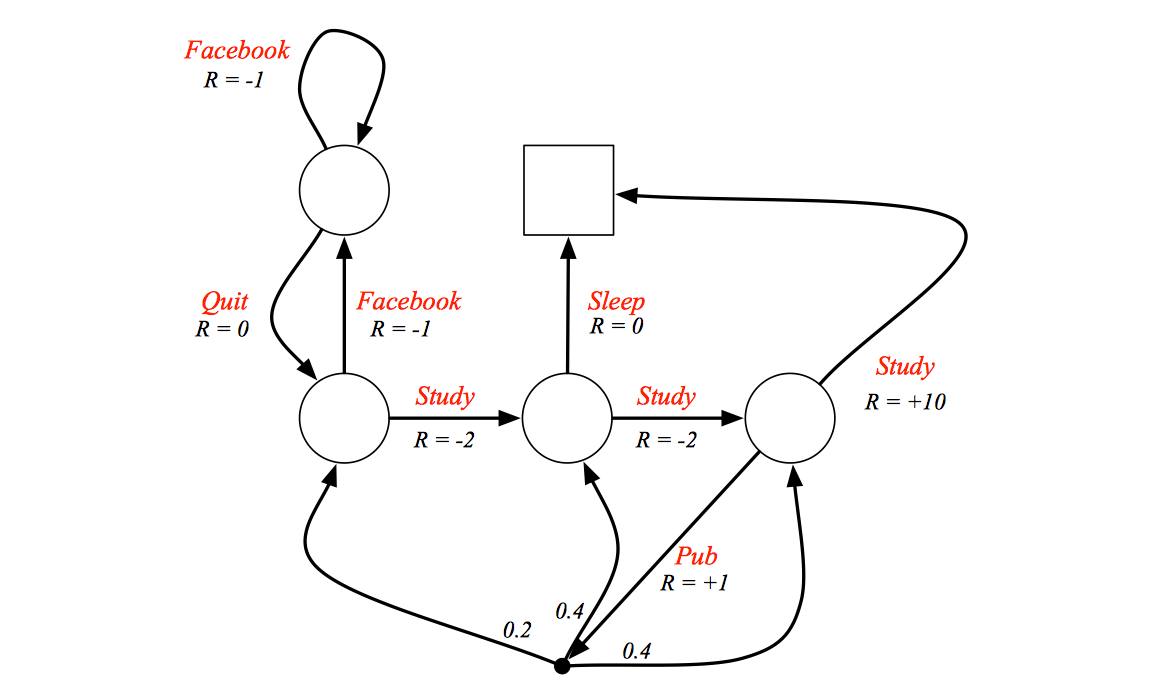

Example

Red marks represents the actions or decisions, what we want to do is to find the best path that maximize the value function.

Policy

Formally, the decision can be defined as policy:

Definition

A policy π is a distribution over actions given states, \[ \pi(a|s)=\mathbb{P}[A_t=a|S_t=s] \]

A policy fully deﬁnes the behaviour of an agent.

Note that MDP policies depend on the current state (not the history), i.e. policies are stationary (time-independent), \(A_t~\pi(\cdot|S_t), \forall t>0\).

An MDP can transform into a Markov process or an MRP:

Given an MDP \(\mathcal{M}=<\mathcal{S,A,P,R}, \gamma>\) and a policy \(\pi\)
The state sequence \(<S_1 , S_2 , ... >\) is a Markov process \(<\mathcal{S, P}^π>\)
The state and reward sequence \(<S_1 , R_2 , S_2 , …>\) is a Markov reward process \(<\mathcal{S,P}^\pi,\mathcal{R}^\pi,\gamma>\) where, \[ \mathcal{P}^\pi_{s,s'}=\sum_{a\in\mathcal{A}}\pi(a|s)P^a_{ss'} \]

\[ \mathcal{R}^\pi_s=\sum_{a\in\mathcal{A}}\pi(a|s)\mathcal{R}^a_s \]

Value Function

There are two value functions: the first one is called state-value function which represents the expected return following policy \(\pi\), the other is called action-value function which measures the goodness/badness of an action following policy \(\pi\).

Definition

The state-value function \(v_π (s)\) of an MDP is the expected return starting from state \(s\), and then following policy π \[ v_\pi(s)=\mathbb{E}_\pi[G_t|S_t=s] \]

Definition

The action-value function \(q_π (s, a)\) is the expected return starting from state \(s\), taking action \(a\), and then following policy \(π\) \[ q_\pi(s,a)=\mathbb{E}_\pi[G_t|S_t=s,A_t=a] \]

Example

Bellman Expectation Equation

The state-value function can again be decomposed into immediate reward plus discounted value of successor state, \[ v_\pi(s)=\mathbb{E}_\pi[R_{t+1}+\gamma v_\pi(S_{t+1})|S_t=s] \] The action-value function can similarly be decomposed, \[ q_\pi(s,a)=\mathbb{E}_\pi[R_{t+1}+\gamma q_\pi (S_{t+1},A_{t+1})|S_t=s,A_t=a] \] Bellman Expectation Equation for \(V_π\)

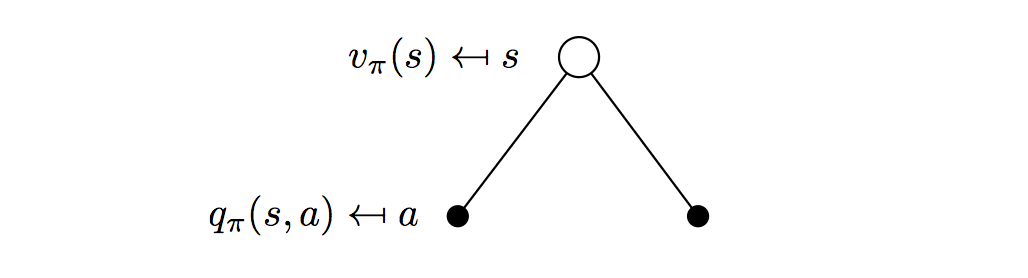

\[ v_\pi(s)=\sum_{a\in\mathcal{A}}\pi(a|s)q_\pi(s,a) \] The look-ahead approach is taking an action and computing its reward, all we need to do is to averaging all possible actions' rewards, which is equal to current state-value.

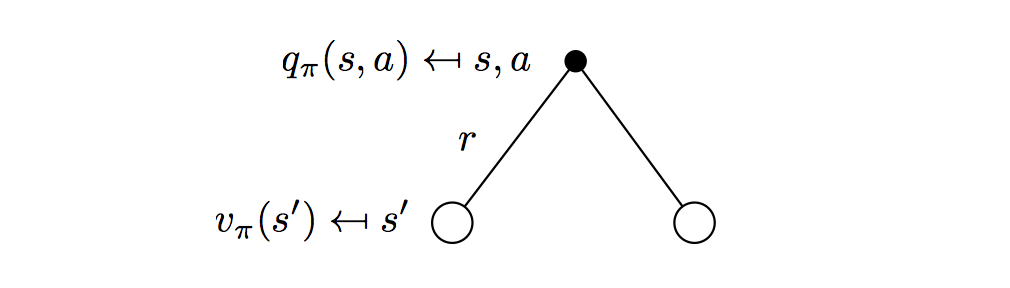

Bellman Expectation Equation for \(Q_π\)

\[ q_\pi(s,a)=\mathcal{R}_s^a + \gamma \sum_{s'\in\mathcal{S}}P^a_{ss'}v_\pi(s') \] It is identical to the immediate reward of taking action \(a\) plus the average of the reward/value of all possible states which the action could lead to.

Bellman Expectation Equation for \(V_π\)

\[ v_\pi(s)=\sum_{a\in\mathcal{A}}\pi(a|s)(\mathcal{R}^a_s+\gamma\sum_{s'\in\mathcal{S}}P^a_{ss'}v_\pi(s')) \] This is a two-step look-ahead approach, just combining the last two equations.

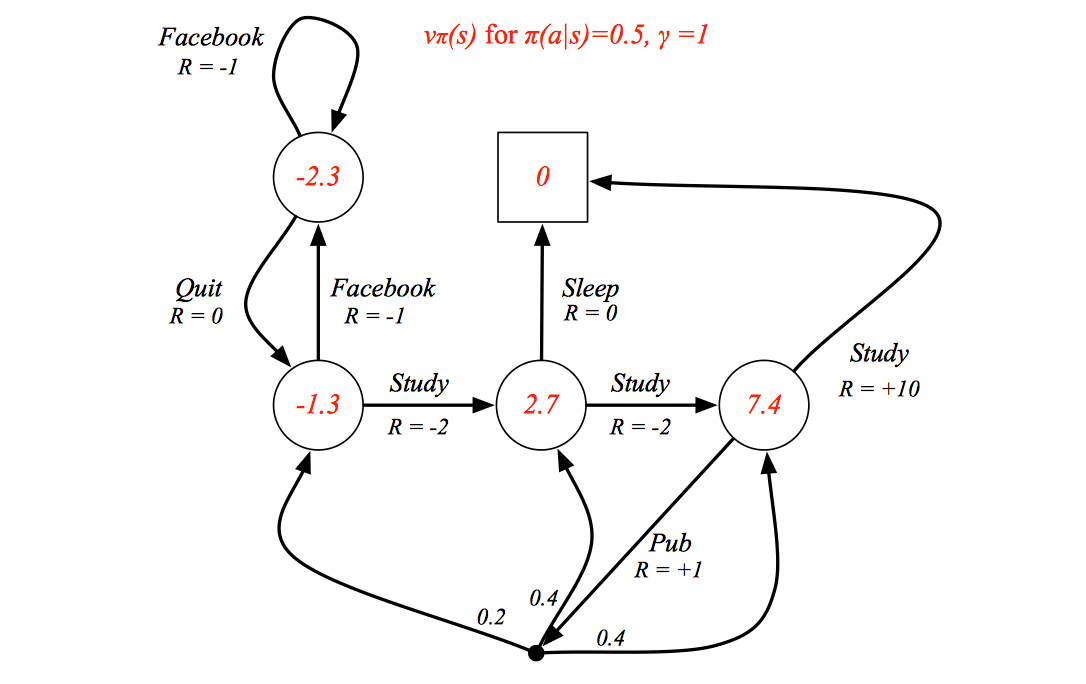

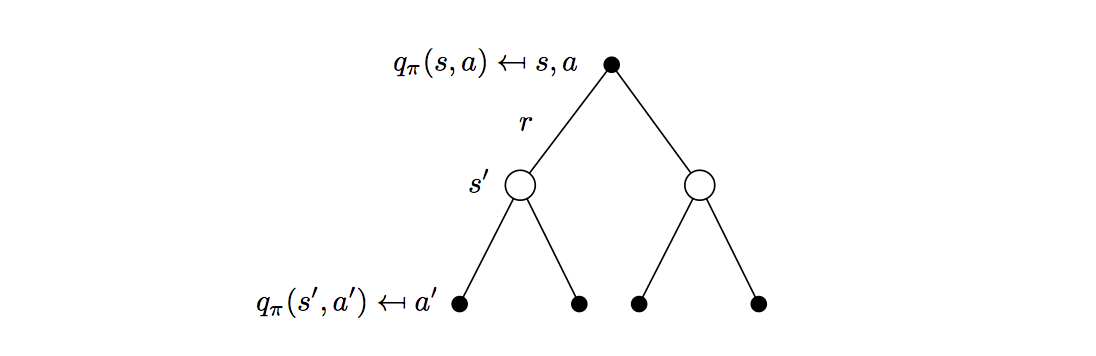

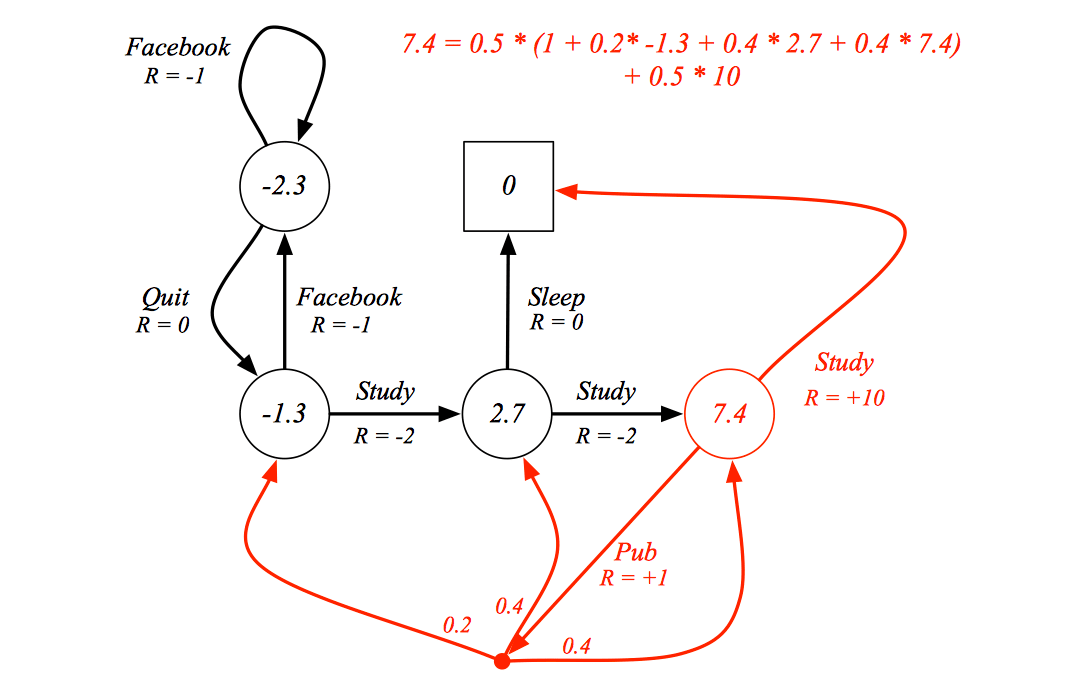

\[ q_\pi(s,a)=\mathcal{R}^a_s+\gamma\sum_{s'\in\mathcal{S}}P^a_{ss'}\sum_{a'\in\mathcal{A}}\pi(a'|s')q_\pi(s',a') \] Example: State-value function

Bellman Expectation Equation (Matrix Form)

The Bellman expectation equation can be expressed concisely using the induced MRP, \[ v_\pi=R^\pi+\gamma P^\pi v_\pi \] with direct solution \[ v_\pi=(I-\gamma P^{\pi-1})^{-1}R^\pi \] Optimal Value Function

Definition

The optimal state-value function \(v_∗(s)\) is the maximum value function over all policies \[ v_\ast(s)=\max_{\pi}v_\pi(s) \] The optimal action-value function \(q_∗ (s, a)\) is the maximum action-value function over all policies \[ q_\ast(s,a)=\max_\pi q_\pi(s,a) \]

The optimal value function speciﬁes the best possible performance in the MDP.

If we know the \(q_*(s,a)\), we "solve" MDP because we know what actions should take at each state to maximize the reward.

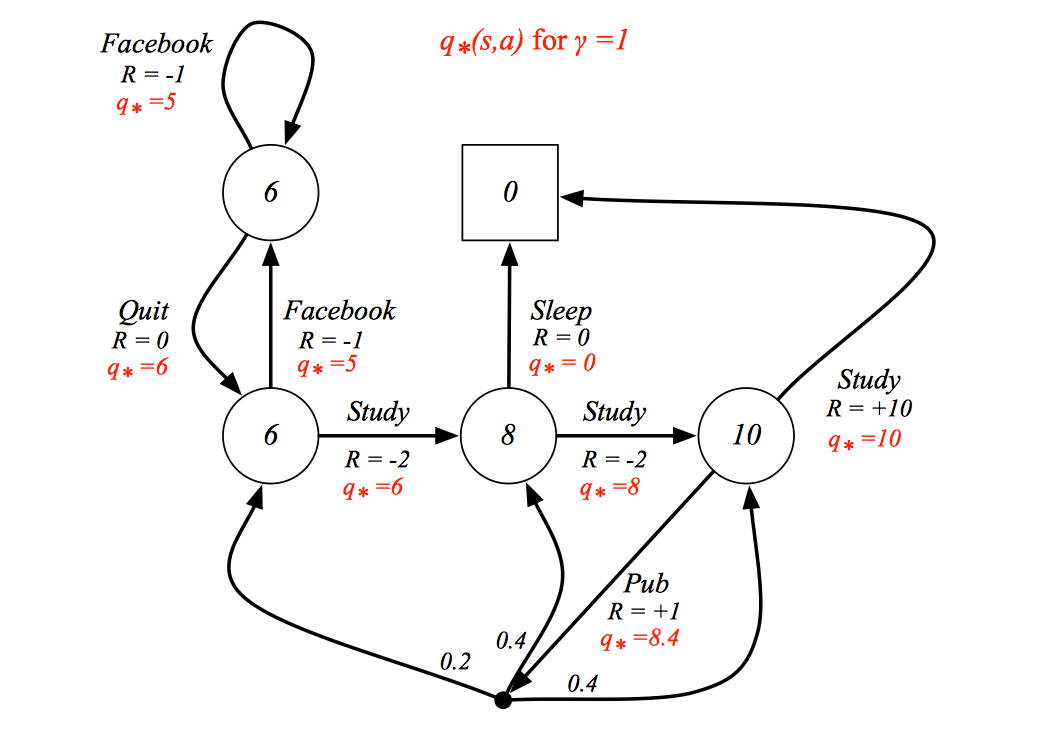

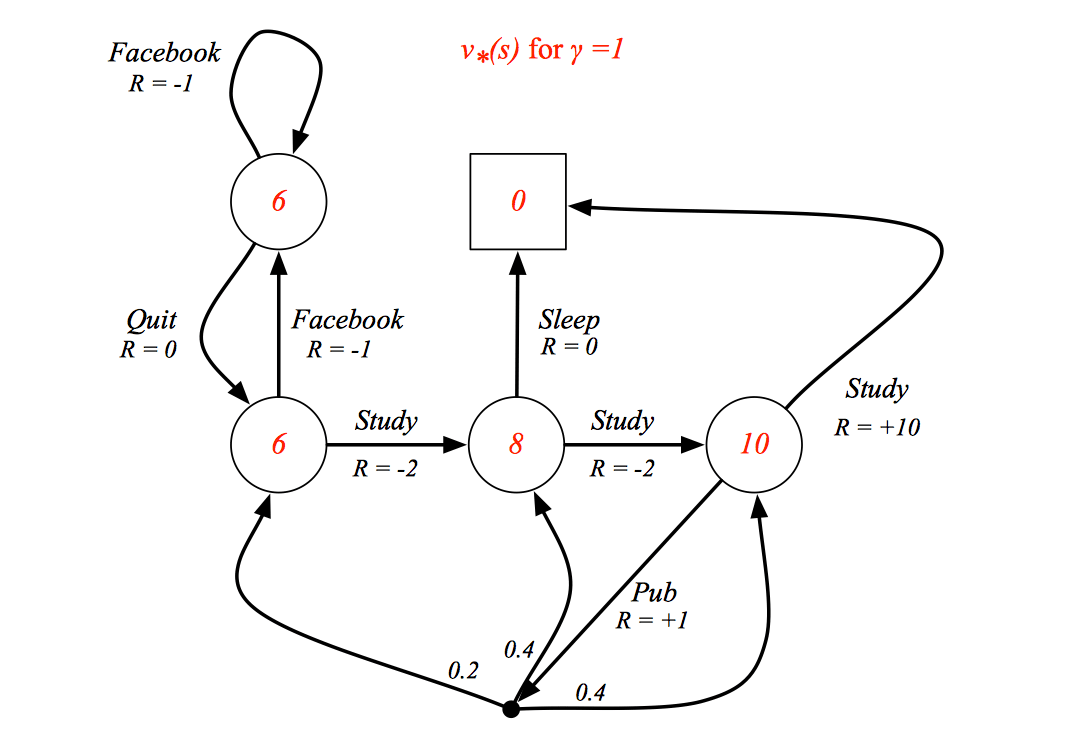

Example

Optimal Policy

Deﬁne a partial ordering over policies \[ \pi≥\pi'\ if\ v_\pi(s)≥v_{\pi'}, \forall s \]

Theorem

There exists an optimal policy \(π_∗\) that is better than or equal to all other policies,, \(\pi_* ≥ \pi, \forall \pi\)

All optimal policies achieve the optimal value function, \(v_{pi_*}=v_*(s)\)

All optimal policies achieve the optimal action-value function, \(q_{\pi_*}(s,a)=q_*(s,a)\)

Finding an Optimal Policy

An optimal policy can be found by maximising over \(q_∗ (s, a)\),

\[ \pi_\ast(a|s)=\begin{cases} 1\ if\ a=\arg\max_{a\in\mathcal{A}}q_\ast(s,a) \\ 0 \ otherwise \end{cases} \]

There is always a deterministic optimal policy for any MDP. So if we know \(q_∗ (s, a)\), we immediately have the optimal policy.

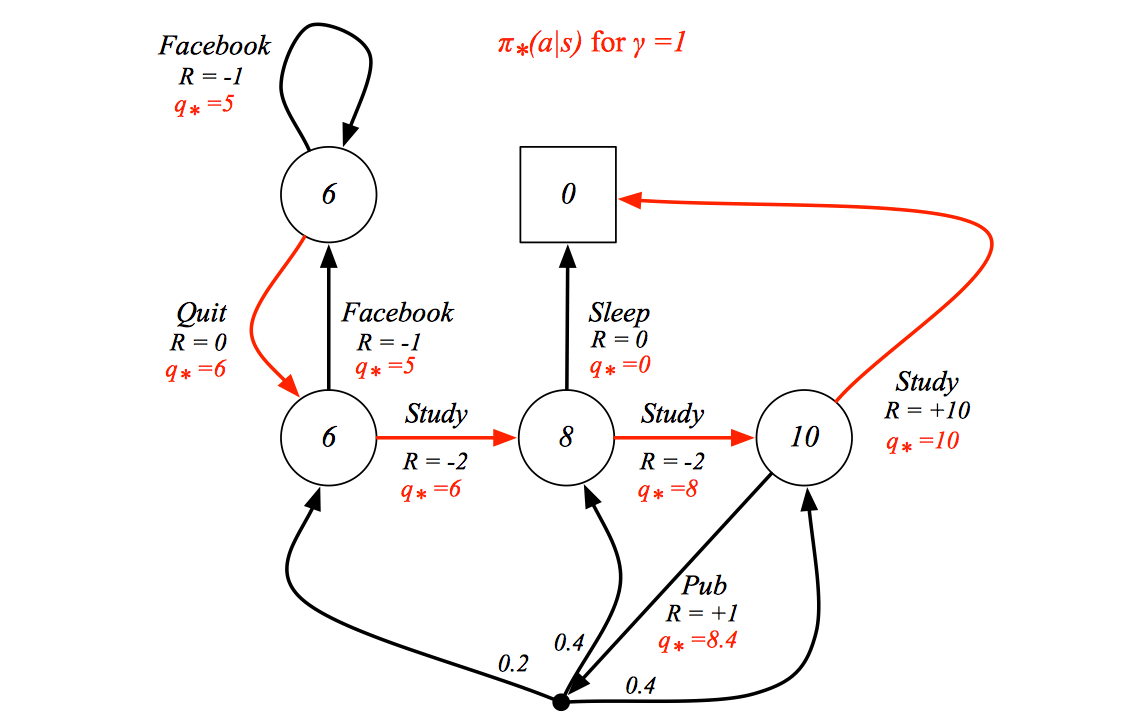

The optimal policy is highlight in red.

Bellman Optimality Equation

The optimal value functions are recursively related by the Bellman optimality equations:

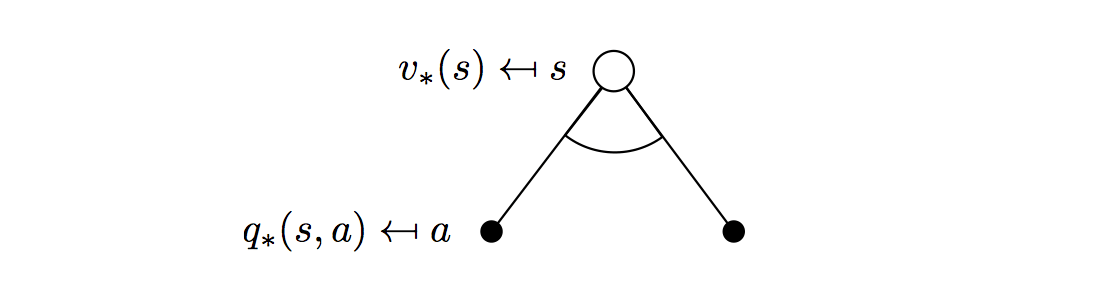

\[v_\ast(s)=\max_aq_\ast(s,a)\]

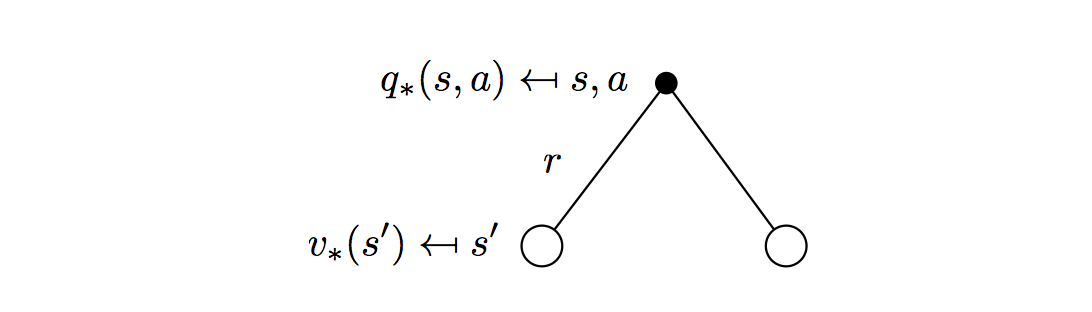

\[q_\ast(s,a)=\mathcal{R}^a_s+\gamma\sum_{s'\in\mathcal{S}}\mathcal{P}^a_{ss'}v_\ast(s')\]

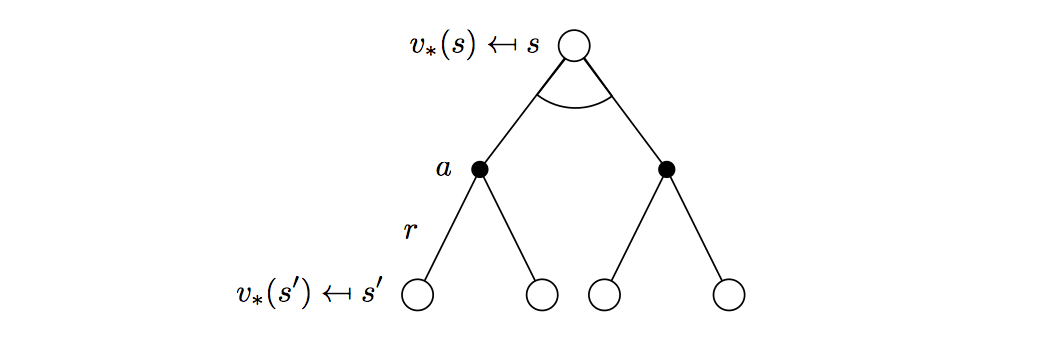

\[v_\ast(s)=\max_a\mathcal{R}^a_s+\gamma\sum_{s'\in\mathcal{S}}\mathcal{P}^a_{ss'}v_\ast(s')\]

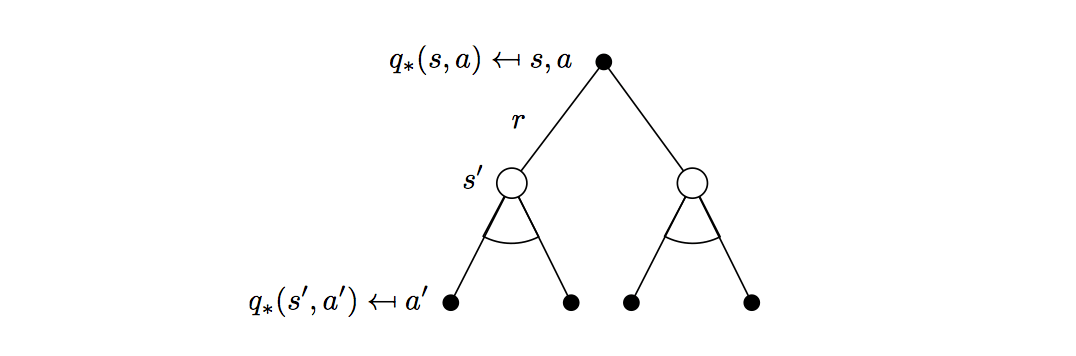

\[q_\ast(s,a)=\mathcal{R}^a_s+\gamma\sum_{s'\in\mathcal{S}}P^a_{ss'}\max_{a'}q_\ast(s',s)\]

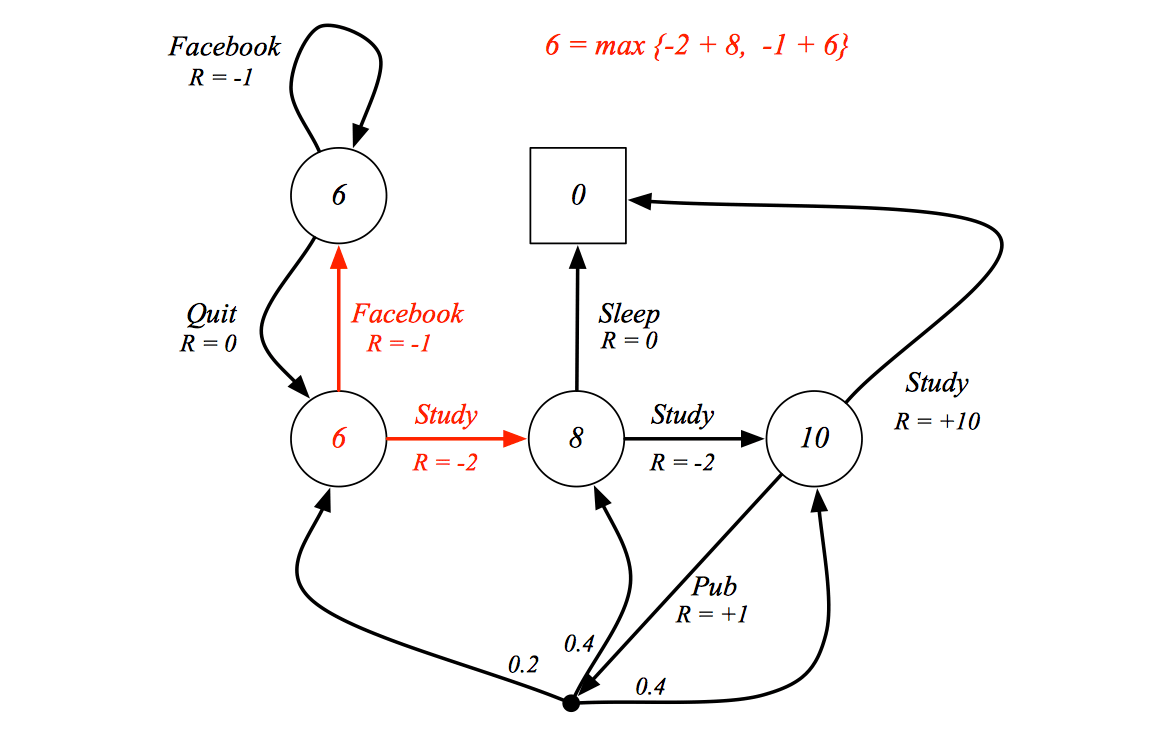

Example

Solving the Bellman Optimality Equation

Bellman Optimality Equation is non-linear, so it is not able to be sovle as solving linear equation. And there is no closed from solution (in general).

Many iterative solution methods

Value Iteration
Policy Iteration
Q-learning
Sarsa

End. Next note will introduce how to solve the Bellman Optimality Equation by dynamic programming.
